Stepper motor components as part of the implementation is the key to the integration of mechanical and electrical products, widely used in various automated control system.
NO.
Series
Model
Step
Angle
(° )
Voltage
(V)
Current
(A)
Holding Torque
(Kg.cm)
Rotor Inertia
(g.m2 )

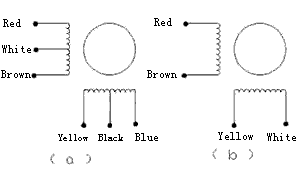

Wiring Diagram

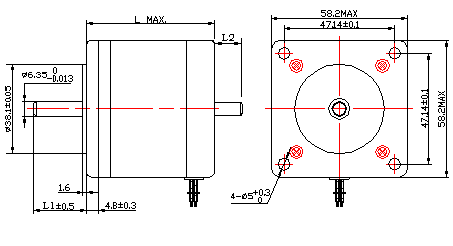

The dimension
L
L1
L2
1
57BYG007
1.8
12
0.38
2.94
60
a
41
21
-
2
57BYG008
1.8
4.0
1.3
4.90
118
a
51
21
-
3
57BYG009
1.8
2.4
2.4
5.88
145
a
56
21
-
4
57BYG060
1.8
2.6
2.0
6.10
118
b
51
21
-
5
57BYG061
1.8
6.0
0.50
3.5
60
b
41
21
-
6
57BYG096
1.8
2.7
3.0
8.50
145
b
56
21
-
7
57BYG070
1.8
5.4
1.5
8.80
230
a
76
21
-
8
57BYG707
1.8
4.1
2.3
8.80
230
b
76
21
-
9
57BYG007-4
1.8
12
0.38
3.43
118
a
51
21
-
10
57BYG027
1.8
4
1.4
5.194
118
a
51
21
-
11
57BYG055
1.8
4
1.1
2.94
60
a
41
21
19
12
57BYG056
1.8
2.3
1.5
2.94
60
a
41
21
-
13
57BYG057
1.8
1.4
3.8
4.9
118
a
51
26
19
14
57BYG059
1.8
4
1.6
5.88
145
a
56
21
-
15
57BYG066
1.8
6
0.85
4.116
118
b
51
21
-
16
57BYG069
1.8
6.0
1.2
5.88
145
a
56
21
-
17
57BYG084
1.8
12
0.6
5.88
145
a
56
21
-
18
57BYG085
1.8
12
0.38
3.528
60
b
41
21
-
19
57BYG106
1.8
8.4
0.7
6.88
145
b
56
21
-
20
57BYG085-1
1.8
14
0.34
3.528
60
b
41
21
-
21
57BYG401
1.8
2.4
0.38
3.43
60
b
41
21
-
22
57BYG501
1.8
2.3
2.3
4.9
118
a
51
21
19
23
57BYG601
1.8
2.25
2.25
5.88
145
a
56
21
-
24
57BYG602
1.8
4.2
1.5
5.88
145
a
56
21
19
25
57BYG701
1.8
3.36
2.0
8.82
230
a
76
21
19
the above listed are just for classic products [they also can be ordered as per customer]
