Stepper motor components as part of the implementation is the key to the integration of mechanical and electrical products, widely used in various automated control system.
Insulation Resistance---------------------500VDC 100MΩ
Min
Insulation Class------------------B
Electrical
Specifications
Series
Model
Step
Angle
(°)
Voltage
(v)
Current
(A)
Resistance
(Ω)
Holding
Torque
(g.cm)
Wiring Diagram
Motor

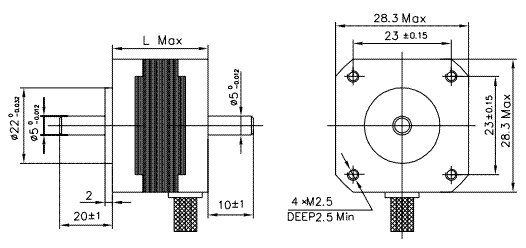

Lenth
(L)
Motor
Weight
(kg)
28BYG450A-01/01s
1.8
2.66
0.95
2.8
430
a
31.5
0.11
28BYG450A-01/01s
1.8
3.8
0.67
5.6
600
b
31.5
0.11
28BYG450B-01/01s
1.8
3.2
0.95
3.4
750
a
44.5
0.14
28BYG450B-01/01s
1.8
4.6
0.67
6.8
950
b
44.5
0.14
28BYG450C-01/01s
1.8
4.4
0.95
4.6
900
a
50.5
0.20
28BYG450C-01/01s
1.8
6.2
0.67
9.2
1200
b
50.5
0.20
The above listed are just for classic products. Motor model last letter S. Representatives from two motor shaft. [They also can be ordered as per customer]
