34HY ( 86mm ) series
Mechanical

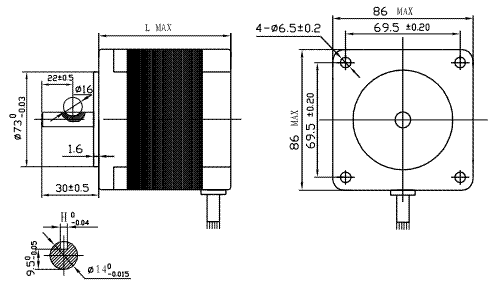

Dimensions :
Wiring Diagram
Amibient Temperature---------------------------------------[-25~40℃]
Temperatire Rise--------------------------------85K
Insulation Resistance---------------------500VDC 100MΩ
Min
Insulation Class------------------E
Electrical
Specifications
Series
Model
Step° )
Current
(A)
Holding
The highest rate of start
(r/s)
Rotor Inertia
(kg.cm2 )
Motor
Lenth
Shaft (m/m)
woodruff key
Motor
Weight
(kg)
86BYGH350A
1.2
5.8
2
5.3
1.1
67
12
4X12
1.65
86BYGH350B
1.2
5.8
4
5.3
2.2
97
12
4X15
2.70
86BYGH350C
1.2
5.8
6
5.3
3.3
127
14
5X15
3.80
