60BYGH550 series
Mechanical

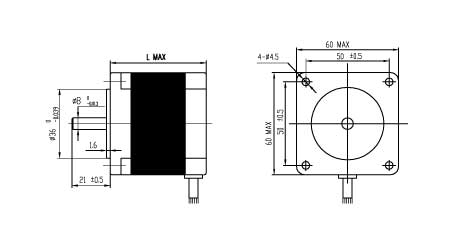

Dimensions :
Wiring Diagram
Amibient Temperature---------------------------------------[-25~40℃]
Temperatire Rise--------------------------------85K
Insulation Resistance---------------------500VDC 100MΩ
Min
Insulation Class------------------E
Electrical
Specifications
Series
Model
Step° )
Current
(A)
Resistance
(Ω)
Inductance
(MH)
HOLDING TORQUE (Kg.cm)
Rotor Inertia
(kg.cm2 )
Motor
Lenth
(L)
Motor
Weight
(kg)
60BYGH550A-01
0.72
0.75
2.75
4.75
5.8
0.27
45
0.6
60BYGH550A-02
0.72
1.5
0.64
1.2
5.8
0.27
45
0.6
60BYGH550B-01
0.72
0.75
3.4
7.15
9.0
0.40
58
0.78
60BYGH550B-02
0.72
1.5
0.8
2
9.0
0.40
58
0.78
60BYGH550C-01
0.72
0.75
5.5
1.5
14.5
0.82
86
1.36
60BYGH550C-02
0.72
1.5
1.28
3.85
14.5
0.82
86
1.36
60BYGH550D-01
0.72
2.4
1.1
3.3
18.9
1.22
110
1.62
