Stepper motor components as part of the implementation is the key to the integration of mechanical and electrical products, widely used in various automated control system.
K D E 16H ( 39mm ) series
Mechanical

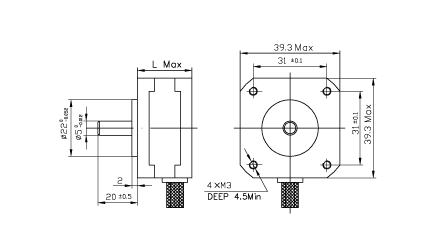

Dimensions:
Wiring Diagram
Amibient Temperature---------------------------------------[-25~40℃]
Temperatire Rise--------------------------------85K
Insulation Resistance---------------------500VDC 100MΩ
Min
Insulation Class------------------B
Electrical
Specifications
Series
Model
Step° )
Voltage
Current
(A)
Resistance
(Ω)
Inductance
(MH)
Holding Torque(g.cm)
Detent
Torque (g.cm)
Rotor Inertia
(g.cm2 )
Motor
Lenth
(L)
Motor
Weight
(kg)
39BYG006
1.8
2.6
0.40
6.6
7.5
650
<200
11
b
20
0.12
39BYG009
1.8
6.5
0.50
13
7.5
800
<200
11
a
20
0.12
39BYG202
1.8
4.6
0.65
7
9.3
1800
<200
20
b
34
0.20
39BYG204
1.8
12
0.40
30
32
2200
<200
20
b
34
0.20
39BYG206
1.8
9
0.60
15
16
2200
<200
20
b
34
0.20
39BYG208
1.8
12
0.30
40
20
1300
<200
20
a
34
0.20
39BYG210
1.8
12
0.16
75
50
1100
<200
20
a
34
0.20
39BYG402
1.8
12
0.50
24
45
2900
<200
24
b
38
0.23
39BYG403
1.8
6
0.80
7.5
6
2000
<200
24
a
38
0.23
39BYG601
1.8
12
0.30
40
100
2800
<250
40
b
44
0.27
