K D E 42H ( 110mm ) series ::::

Page 1 Page 2

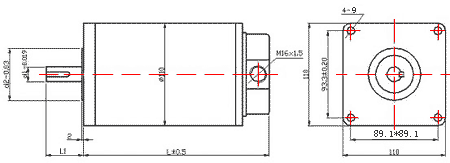

Mechanical Dimensions：

Wiring diagram：


	(a)

Amibient Temperature------------------ -25～40

Temperatire Rise---------------------- 85K

Dielectric Strength-------------------950C AC 50HZ 1Minute

Step Accuracy------------------------- ±5.4(4φ)

End Play------------------------------0.1～0.3mm

Radial play---------------------------0.02mm Max

Insulation Class----------------------E

Insulation Resistance-----------------500V DC 100MΩ MIN

NO.	Series Model	Step Angle (°)	Voltage （V）	Current （A）	Resistance （Ω）	Holding Torque(kg.cm)	Rotation inertia (kg.cm²)	The dimension
NO.	Series Model	Step Angle (°)	Voltage （V）	Current （A）	Resistance （Ω）	Holding Torque(kg.cm)	Rotation inertia (kg.cm²)	L	L1	D1	D2	Key
1	110BYG550B	0.72	130	5	1.4	90	8.3	140	52	16	56	5*25
2	110BYG550C	0.72	130	5	0.9	120	12	170	52	16	56	5*25
3	110BYG550D	0.72	130	5	1.2	150	15	201	52	16	56	5*25
the above listed are just for classic products [they also can be ordered as per customer]
