Stepper motor components as part of the implementation is the key to the integration of mechanical and electrical products, widely used in various automated control system.
K D E
34HD ( 86mm ) series
::::

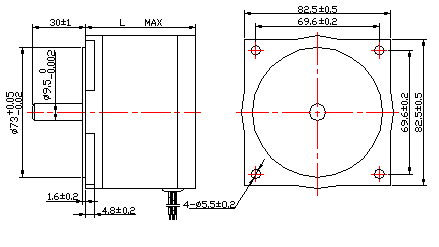

Mechanical Dimensions:
Series
Model
A
B
86BYG450A
62
30.2
86BYG450B
94
31.2
86BYG450C
134
31.6
Amibient Temperature------------------
-25~40
Temperatire Rise----------------------
85K
Dielectric Strength-------------------500V
AC 50HZ 1 Minute
Insulation Class----------------------B
Insulation Resistance-----------------500V
DC 100MΩ MIN
Wiring Diagram:
A - 1 - 2 - 5 -6 -
B - 3 - 4 - 7 -8 -
Under 2-phase series connection,supplied
with the current as listed above.
Under 2-phase series connection,supplied
with the current times
as much as listed one.

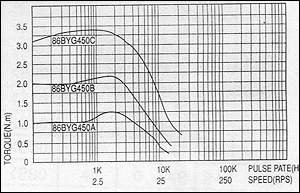

Pulse-torque Characteristics:
Testing Conditions:DC85v /step.
using the PAKER driver type CD35m.
No.
Series
Model
Phase Number
Step Angle
(°)
Voltage
(V)
Current
(A)
Inductor
(mH)
Holding Torque
(N.m)
Detent Torque
(N.m)
Rotation inertia(kg.cm2 )
Weight
(kg)
1
86BYG450A-01
4
1.8
2.9
1.7
6
1.18
0.08
0.64
1.6
2
86BYG450A-02
4
1.8
5
1.25
16
1.18
0.08
0.64
1.6
3
86BYG450A-03
4
1.8
1.6
3.6
2
1.18
0.08
0.64
1.6
4
86BYG450A-04
4
1.8
1.4
4.5
1.3
2.16
0.08
0.64
1.6
5
86BYG450B-01
4
1.8
3
4
3.5
2.16
0.15
1.3
2.6
6
86BYG450B-02
4
1.8
2.5
4.6
2.5
2.16
0.15
1.3
2.6
7
86BYG450B-03
4
1.8
4.3
2.5
9
2.16
0.15
1.3
2.6
8
86BYG450B-04
4
1.8
5.4
2
15
2.16
0.15
1.3
2.6
9
86BYG450C-01
4
1.8
2
7
2
2.94
0.25
1.9
3.8
10
86BYG450C-02
4
1.8
4
4
6
2.94
0.25
1.9
3.8
the above listed are just for classic products [they also can be ordered as per customer]
