  K D E   17H ( 42mm ) series  ::::   1.8 degree    0.9 degree

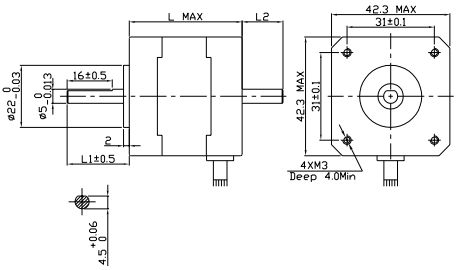

Mechanical Dimensions

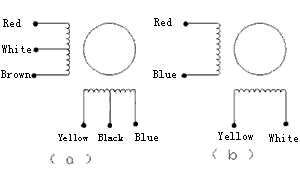

Wiring Diagram:

Amibient Temperature------------------ -25~40
Temperatire Rise---------------------- 85K
Dielectric Strength-------------------500V AC 50HZ 1 Minute
Insulation Class----------------------B
Insulation Resistance-----------------500V DC 100MΩ MIN
NO.
Series Model
Step
Angle
(°)
Voltage
(V)
Current
(A)
Holding Torque(g.cm) Detent Torque(g.cm) Rotation inertia
(g.cm2)
Wiring Diagram The dimension
L L1 L2
1 42BYG112LS
0.9
1.8
0.60 1300 <200 40 b 40 22 19.5
2 42BYG113
0.9
12
0.60 1800 <200 27 b 34 22 -
3 42BYG113LS
0.9
12
0.60 2400 <200 40 b 40 22 14.5
4 42BYG113HS
0.9
12
0.60 900 <200 40 b 48 22 20
5 42BYG114
0.9
12
0.40 800 <200 24 b 20 22 -
6 42BYG112HS
0.9
2
0.60 1700 <220 40 b 48 22 20
7 42BYG201
3.75
12
0.60 900 <200 20 a 34 22 -
the above listed are just for classic products    [they also can be ordered as per customer]
