| Detailed Description | |
|---|---|
| Item | Specifications |
| Step Accuracy | ¡À5% |
| Temperature Rise | 80¡æ Max |
| Ambient temperature Range | -20¡æ¡«+50¡æ |
| Insulation Resistance | 100M¦¸Min.500V |
| Dielectric Strength | 500V AC 1 Minute |
| Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Step Angle | Lead Wire | Rated Current | Holding Torque | Rotor Inertia | Detent Torque | Wiring diagram | Outside Drawing | Motor Weight | ||
| £¨ ¡ã£© | £¨A£© | (Kg.cm) | (g.cm2) | (g.cm) | L | L1 | L2 | (Kg) | |||
| 85BYGH450A01 | 1.8 | 4 | 2 | 36 | 1.4 | 1.6 | A | 76 | 37 | 2.3 | |
| 85BYGH450A02 | 1.8 | 4 | 5 | 33 | 1.4 | 1.6 | A | 76 | 37 | 2.3 | |
| 85BYGH450A03 | 1.8 | 4 | 4 | 35 | 1.4 | 1.6 | A | 76 | 37 | 2.3 | |
| 85BYGH450A04 | 1.8 | 4 | 2.8 | 35 | 1.4 | 1.6 | A | 76 | 37 | 2.3 | |
| 85BYGH450A05 | 1.8 | 4 | 3 | 35 | 1.4 | 1.6 | A | 76 | 37 | 2.3 | |
| 85BYGH450B02 | 1.8 | 8 | 2 | 40 | 2.7 | 2.4 | B | 114 | 37 | 3.6 | |
| 85BYGH450B01 | 1.8 | 4 | 2 | 60 | 2.7 | 2.4 | A | 114 | 37 | 3.6 | |
| 85BYGH450B03 | 1.8 | 4 | 3 | 68 | 2.7 | 2.4 | A | 114 | 37 | 12 | 3.6 |
| 85BYGH450B04 | 1.8 | 4 | 5 | 65 | 2.7 | 2.4 | A | 114 | 37 | 3.6 | |
| 85BYGH450C01 | 1.8 | 8 | 2 | 76 | 3.6 | 3 | B | 152 | 37 | 5 | |
| 85BYGH450C02 | 1.8 | 4 | 2.5 | 95 | 3.6 | 3 | A | 152 | 37 | 5 | |
| 85BYGH450C03 | 1.8 | 4 | 3 | 105 | 3.6 | 3 | A | 152 | 37 | 5 | |
| 85BYGH450C04 | 1.8 | 4 | 4.5 | 90 | 3.6 | 3 | A | 152 | 37 | 5 | |
| 85BYGH450C05 | 1.8 | 4 | 5 | 96 | 3.6 | 3 | A | 152 | 37 | 5 | |
| 85BYGH450D01 | 1.8 | 4 | 2.5 | 50 | 1.7 | 2.1 | A | 96 | 37 | 3 | |
| 85BYGH450D02 | 1.8 | 8 | 2 | 45 | 1.7 | 2.1 | B | 96 | 37 | 3 | |
| 85BYGH250E01 | 1.8 | 4 | 3 | 33 | 1 | 1.4 | A | 66 | 37 | 1.7 | |
¡ùNote£ºlisted in the table is only for representative products, accept custom.

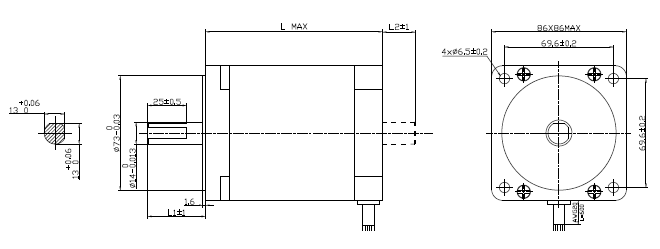

¡ôMechanical Dimensions:
¡ôWiring Diagram:
