Integrated stepper motor


I¡¢General Specifications£º

Item Specifications
Step Angle 1.8¡ã
Step Accuracy ¡À5%
PhaseNumber 2
Temperature Rise 80¡æ Max
Ambient temperature Range -20¡æ¡«+50¡æ
Insulation Resistance 100M¦¸Min.500V DC
Dielectric Strength 500V AC 1 Minute

II¡¢Stepper Motor Electrical Specifications:

Model Current Holding Torque Phase Resistance Phase Inductance Outside Drawing Matching Stepper Motor Driver Motor Weight
£¨A£© (Kg.cm) £¨¦¸£© £¨mH£© (Kg)
42BYGH250E11 1.5 4.5 2.5 2.7 (A) A B C D 0.4
57BYGH250E508 4 15 0.4 1.3 (B) A B C D 1.2
85BYGH250B99 5 65 0.4 0.85 (C) A B C D 4

III¡¢Matching Stepper Motor Driver:

KD352P KD366P KD352C KD366C KD352CE KD366CE
A B C D E F

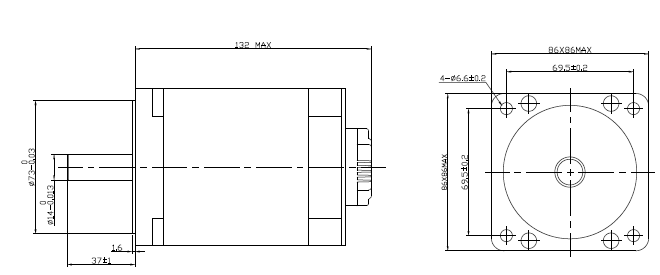

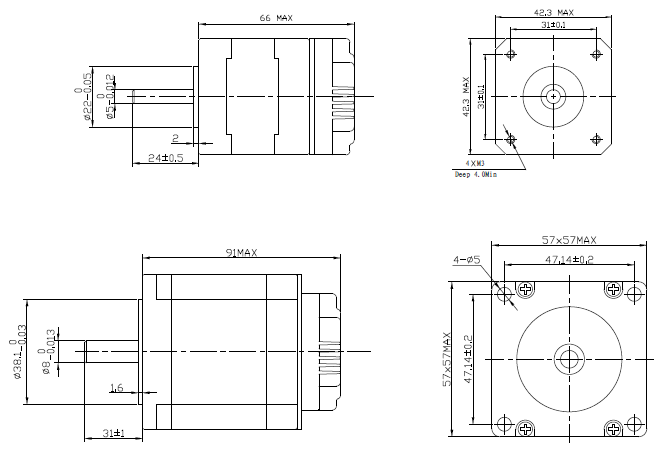

IV¡¢Mechanical Dimensions:

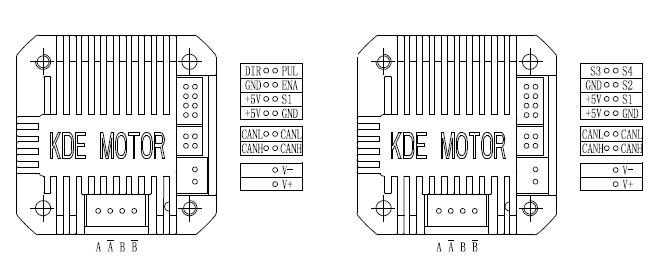

V£ºWiring Diagram:
